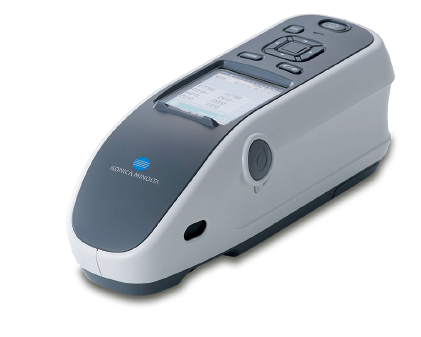

Konica Minolta CM-25cG Color and Gloss Meter
CM-25cG is a compact and lightweight portable spectrophotometer with 45°c:0° geometry and a true high performance 60°-gloss-sensor. The 45°c:0° geometry used is renowned for providing color values offering excellent correlation to visual perception. This is achieved by fully excluding surface effects of gloss and/or texture. The built-in gloss-sensor accurately measures surface gloss.
Being fully compatible to the previous CM-2500c model, the CM-25cG’s perfect circular optical system (defined as 45°c:0°) achieves high accuracy and repeatability, especially on textured or structured surfaces, regardless of measurement direction. Not only does it measure color, but also true 60°-gloss at the same time and, as a world premiere, not only for standard MAV aperture size (10mm) but also for small measurement areas with 3mm spot size.
The CM-25cG is lightweight and uses a large and easy-to-read color display to show and manage measurement data either numerically or graphically. For correct positioning on a sample, the CM-25cG is the first device offering a true optical sample viewer in a 45°:0° geometry instrument.

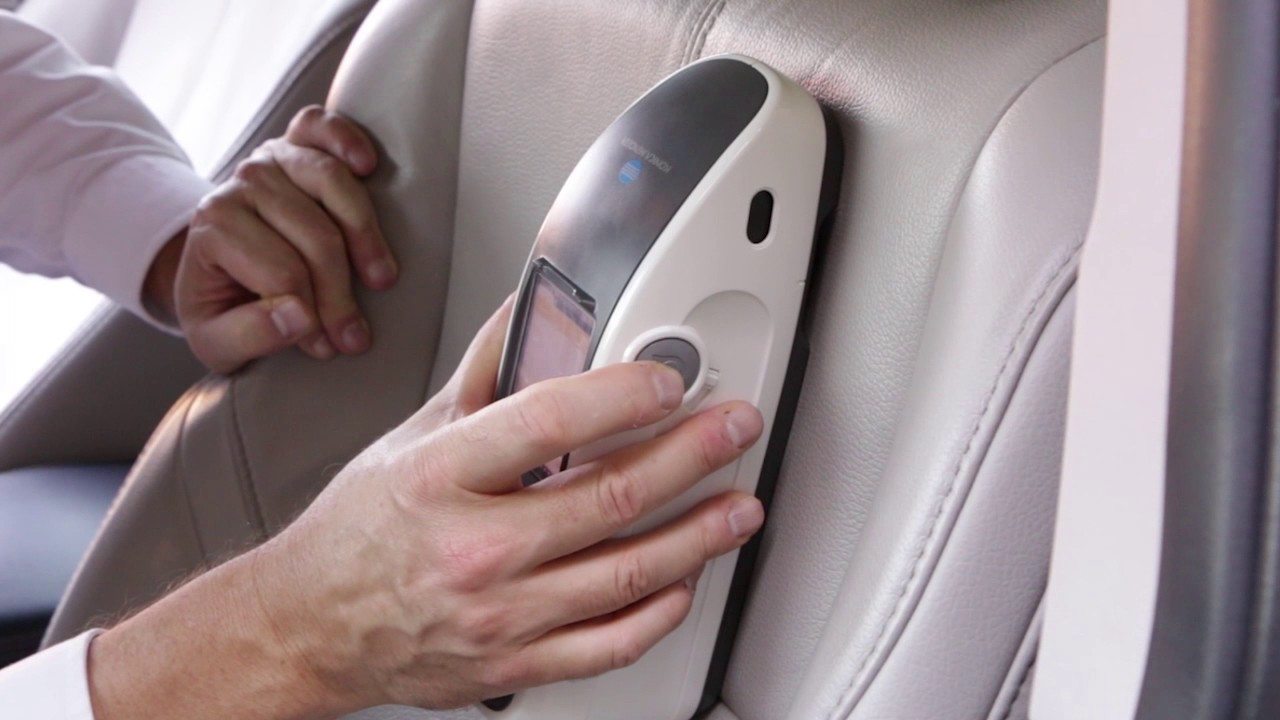

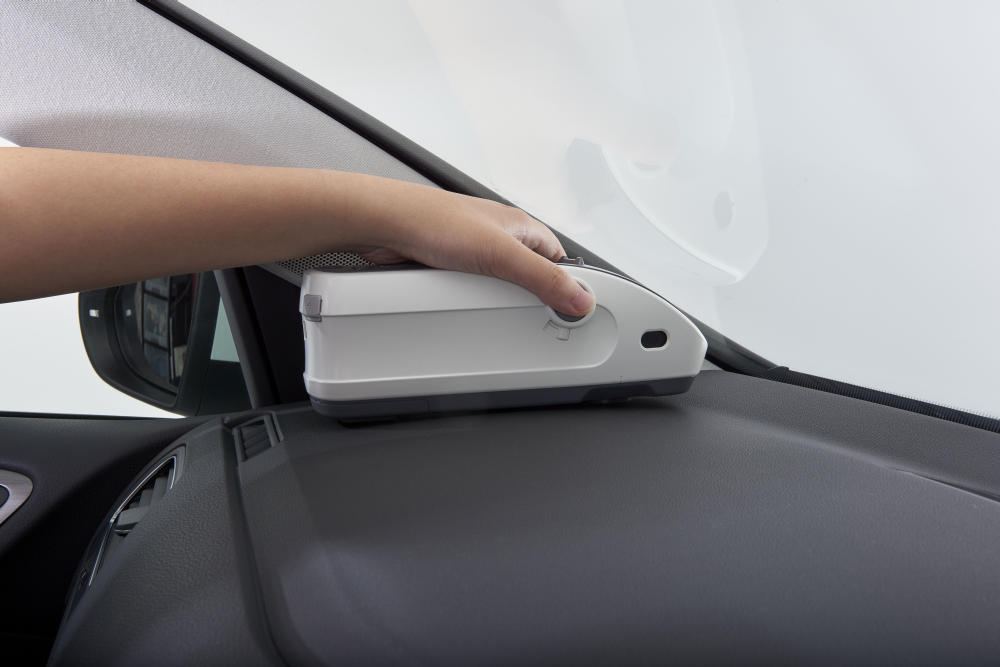

Konica Minolta CM-25cG color and gloss meter is a compact handheld spectrophotometer with 45°c:0° geometry and a true high performance 60° gloss sensor for simultaneous color and gloss measurements of automotive interior trims and materials with many “world first” features. Fully compatible with its predecessor model, the CM-25cG’s perfect circular optical system achieves highest accuracy and repeatability levels, especially on textured or structured surfaces, regardless of measurement direction.
As a world first, the CM-25cG offers simultaneous color and gloss measurements with changeable apertures for either 8mm (MAV) or spot size 3mm (SAV) and a measuring time of less than 1 second. The CM-25cG is lightweight and offers a large and easy-to-read FTP color display to read and manage measurement data either numerically or graphically. For perfect sample positioning, the CM-25cG is the first instrument to offer a true optical sample viewer in a 45°:0° geometry instrument.
All CM-25cG are by default close tolerance (CT) instruments and thus, Konica Minolta proves once more its unequalled knowledge and ability in optical precision technology. Highest Inter-Instrument-Agreement (IIA) levels of just ΔE*ab 0.15 (Average on 12 BCRA tiles) within the CM-25cG, and the same for Inter-Model-Agreement (IMA) to the predecessor model series mark an unprecedented level of performance and accuracy.
Unit Price: USD9,999/pc, contact us for latest pricing.
- Unique 45°c:0° geometry spectrophotometer with 60° gloss measurement and optical sample preview
- Two measurement areas: MAV (8mm) and SAV (3mm) for color and MAV (10mm) and SAV (3mm) for gloss in one instrument
- Xenon Flash illumination for best accuracy on dark colors
- Measurement speed approx. 1s
- 360-740 nm wavelength range, 10 nm resolution
- Lightweight (~600g with battery), compact and rugged for on-site measurements
- Connectable via USB and optional Bluetooth®
- Large and easy-to-read high-resolution 2.7” color display
- Group sorting of data by user-definable tags
|Illumination/viewing system||45°c:0° method (45° circumferential illumination, 0° vertical viewing)
CIE No.15, ISO 7724/1, ASTM E179, DIN 5033-7, JIS Z 8722 compliant
|60° ISO 2813, ISO 7668, ASTM D523, ASTM D2457, DIN 67530, JIS Z8741, JIS K5600 compliant optical system|
|Detector||Dual 40-element silicon photodiode arrays||Silicon photo diode|
|Spectral separation device||Planar diffraction grating|
|Wavelength range||360 nm to 740 nm|
|Wavelength pitch||10 nm (approx. 10 nm FWHM)|
|Reflectance range||0 to 175%, resolution: 0.01%||0-200 GU; Output/display resolution：0.01 GU|
|Light source||Pulsed Xenon Lamp||White LED|
|Measurement time||Approx. 1.0 second|
|Minimum interval between measurements||Approx. 2.0 seconds|
|Battery performance||Standalone: Approx. 3000 measurements (at 10s intervals at 23°C)
Bluetooth®: Approx. 1000 measurements (at 10s intervals at 23°C)
|Measurement/illumination area||MAV: Ø8.0 mm / 12 x 16 mm
SAV: Ø3.0 mm / 12 x 16 mm
|MAV: Ø10 mm
SAV: Ø3.0 mm
|Repeatability||Standard deviation within ΔE*ab 0.04 (Measurement conditions: White calibration plate measured 30 times at 10-second intervals after white calibration was performed)||0 - 10 GU:
10 - 100 GU:
|Inter-Instrument Agreement||Within ΔE*ab 0.15 (Average for 12 BCRA Series II color tiles compared to values measured with master body at 23°C)||Gloss value (MAV):
0 - 10 GU:
10 - 100 GU:
(MAV. Compared to values measured with a master body under Konica Minolta standard conditions)
|Interface||USB 2.0 Standard, Bluetooth® Optional|
|CIE Observer||2° and 10° CIE standard colorimetric observer|
|CIE Illuminants||A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12, ID50, ID65, User illuminant
(simultaneous evaluation with two light sources possible)
|Display data||Spectral values/graph, colorimetric values/graph, colour difference values/graph, PASS/FAIL judgment, pseudo colour, colour assessment|
|Color space / Colorimetric data||XYZ, Yxy, CIELAB, CIELCh, HunterLAB, ∆E*ab, ∆E94, ∆E00, CMC (I:c), ∆EHunter, MI, Munsell, WI (ASTM E313-73/96; CIE(WI/Tint)), YI (ASTM E313-73/96; ASTM D1925), ISO Brightness|
|Data memory||Targets: 2500
|Power source||Rechargeable Lithium-Ion battery, USB bus power|
|Dimensions (W × H × L) [mm]||81 x 81 x 224|
|Weight [g]||Approx. 600 (with battery)|
|Display languages||English, French, German, Italian, Polish, Portuguese, Russian, Spanish, Turkish, Chinese (simplified), Japanese|
|Display||2.7-inch TFT color LCD|
|Operating temperature / humidity range||5 - 40°C, relative humidity 80% or less (at 35°C) with no condensation|
|Storage temperature / humidity range||0 - 45°C, relative humidity 80% or less (at 35°C) with no condensation|
|Standard accessories||Calibration stage, Lithium-Ion battery, flat-type battery cover, wrist strap, USB cable, USB power supply|
|Optional Accessories||Hard case, Battery charger and spare batteries, stapler-type target mask, Bluetooth® module, SpectraMagic™ DX software|
|* Specifications are subject to change without prior notice.|
