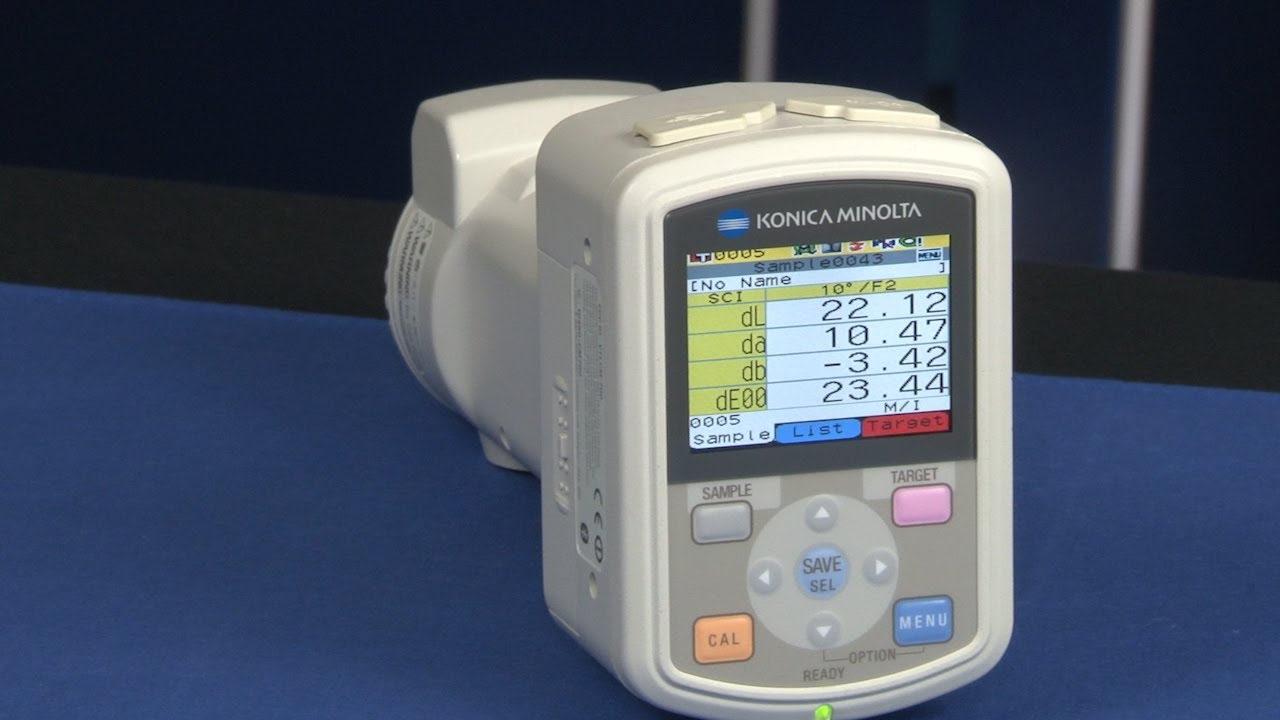

CM-700d
The Konica Minolta CM-700d is a versatile portable spectrophotometer with d/8° integrating sphere optics for high-precision color measurement across a wide range of materials and industries. The CM-700d spectrophotometer combines compact, lightweight design with robust performance, offering excellent inter-instrument agreement and reliable SCI/SCE measurement capability. Equipped with a 35-element silicon photodiode array and dual pulsed xenon lamps, the CM-700d covers the full visible spectrum (360–740 nm) and delivers accurate spectral reflectance data for precise colorimetric calculations. The intuitive interface, large memory capacity (1,000 targets + 4,000 samples), and USB connectivity make the CM-700d ideal for production floor color quality control. Compatible with SpectraMagic NX software, the CM-700d supports comprehensive color analysis, pass/fail evaluation, and SPC charting. The CM-700d is widely used in automotive, plastics, coatings, textiles, food, and building materials industries for color measurement, color difference evaluation, and quality assurance.
About the Konica Minolta CM-700d Spectrophotometer
The Konica Minolta CM-700d is a versatile portable spectrophotometer with d/8° integrating sphere optics for high-precision color measurement across a wide range of materials and industries. The CM-700d spectrophotometer combines compact, lightweight design with robust performance, offering excellent inter-instrument agreement and reliable SCI/SCE measurement capability. Equipped with a 35-element silicon photodiode array and dual pulsed xenon lamps, the CM-700d covers the full visible spectrum (360–740 nm) and delivers accurate spectral reflectance data for precise colorimetric calculations. The intuitive interface, large memory capacity (1,000 targets + 4,000 samples), and USB connectivity make the CM-700d ideal for production floor color quality control. Compatible with SpectraMagic NX software, the CM-700d supports comprehensive color analysis, pass/fail evaluation, and SPC charting. The CM-700d is widely used in automotive, plastics, coatings, textiles, food, and building materials industries for color measurement, color difference evaluation, and quality assurance.
Features
- d/8° optical geometry with SCI/SCE
- Excellent inter-instrument agreement
- Compact and lightweight design
- Large memory capacity
- USB connectivity
Specifications
| Optical Geometry | d/8° (diffuse/8° specular-included/excluded) |
|---|---|
| Sensor | 35-element silicon photodiode array |
| Spectral Range | 360 nm to 740 nm |
| Spectral Resolution | 10 nm |
| Light Source | Pulsed xenon lamp × 2 |
| Measurement Area (MAV) | Φ8 mm |
| Measurement Range | 0 to 175% reflectance |
| Observer Angles | 2° and 10° |
| Illuminants | D65, A, C, F2, F7, F11, F12 |
| Measurement Modes | SCI / SCE |
| Repeatability | ΔE*ab ≤ 0.04 |
| Display | Segment LCD + indicators |
| Data Memory | 1,000 target + 4,000 sample |
| Interface | USB 2.0 |
| Dimensions | 107 × 73 × 211.5 mm |
| Weight | Approx. 550 g (without battery) |
| Battery Life | ~2,000 measurements |
| Compatible Software | SpectraMagic NX |
Measurement Principle of the CM-700d Spectrophotometer
The CM-700d utilizes a d/8° geometry integrating sphere with dual pulsed xenon flash lamps that illuminate the sphere's Spectralon-coated inner surface. The sample receives uniform diffuse illumination, and a detector positioned at 8° from the surface normal collects the reflected light. A diffraction grating disperses the light across a 35-element photodiode array to generate a spectral reflectance curve from 360 nm to 740 nm. The double-beam system references the lamp output against the sphere wall for drift compensation, ensuring consistent accuracy over thousands of measurements.
Applications of the CM-700d Spectrophotometer
The CM-700d serves a broad range of color measurement applications:
Industrial Manufacturing
Color QC of injection-molded plastics, extruded profiles, painted metal, powder coatings, and ceramic tiles.
Automotive Supply Chain
Color verification of interior and exterior components from tier suppliers to OEM assembly lines.
Consumer Products
Color consistency of packaging, printed materials, textiles, and household goods.
Q: What is the difference between CM-700d and CM-600d?
A: The CM-700d and CM-600d share the same optical platform but differ in connectivity and some features. The CM-700d is the standard model with USB connectivity, while the CM-600d adds wireless capability for enhanced mobility on the production floor.
Q: What measurement apertures are available?
A: The CM-700d features an Φ8mm measurement area (MAV) for standard applications.
Q: Is the CM-700d suitable for liquids?
A: Yes, with optional liquid measurement accessories (transmission kit), the CM-700d can measure the color of transparent liquids, films, and glass.
