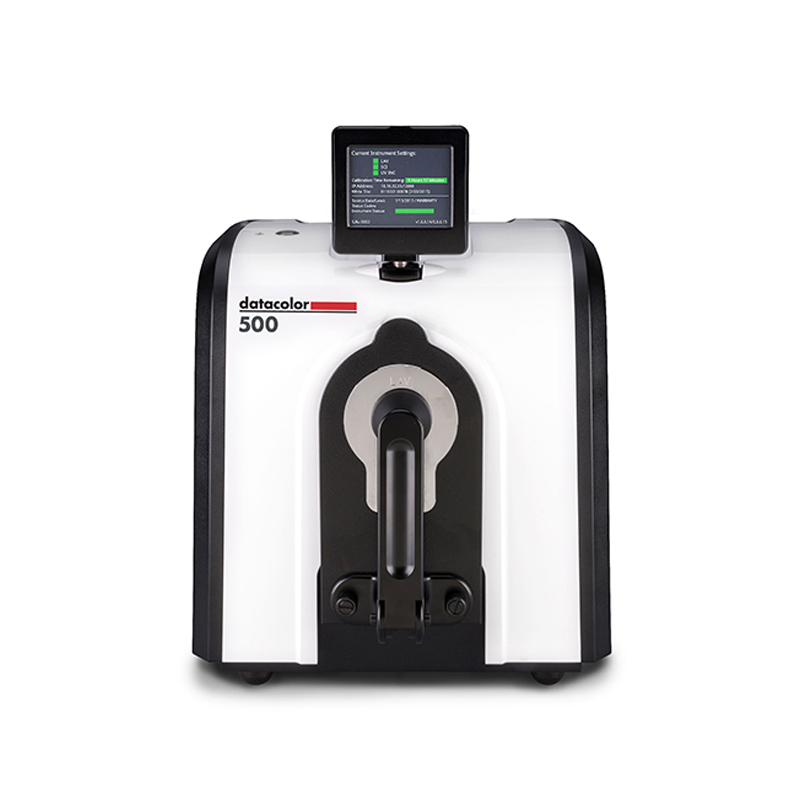

Datacolor 500 & 500UV & 550 Spectrophotometers
Datacolor 500 & 500UV & 550 offers cost-effective, Accurate Color Measurement. It can specify, formulate and control critical color. The Datacolor 500 Family, with an embedded processor and data storage, provides a platform for increased efficiency and color measurement confidence, delivering affordable performance and fleet compatibility.
Datacolor 500 – Cost-effective, accurate color measurement solution.
Datacolor 500 UV – Economical, precise instrument with UV filtering.
Datacolor 550 – Affordable, accurate transmission and reflectance measurement.
Unit Price: USD9,999/pc, contact us for latest pricing.
Download Datacolor 500 & 500UV & 550 Brochure
Features
- No profiling required. Superior design enables the industry’s best inter-instrument agreement right out of the box.
- Utilizes Datacolor’s proprietary SP2000, capturing the true spectral fingerprint of any color at the highest possible accuracy.
- As a result, agreement among all instruments in your fleet is achieved.
- Fully backward compatible with the existing Datacolor 400 instruments.

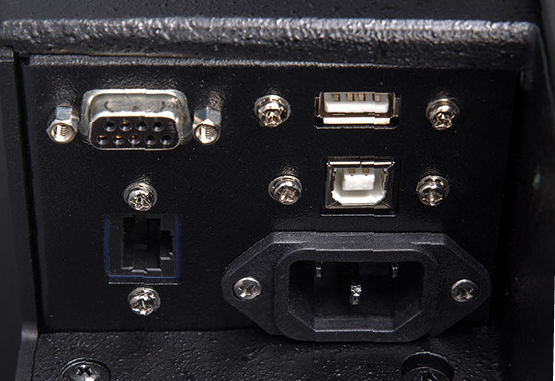

- Instruments are configured with serial, USB or Ethernet connectivity.
- One instrument can be easily accessed by multiple users.
- Measurements can be taken and automatically shared in real-time within a global Citrix or Terminal Server environment.
- 25% less time spent on measuring.
- Improved response times in Citrix and Terminal Server environments.
- LCD screen displays calibration status and instrument settings for proper set-up, as well as a color coded instrument status bar.
- Diagnostic data is stored in the instrument. It can be extracted to enable remote diagnostics and expedite issue resolution.
- Instruments can be serviced in the field or at any service center worldwide by qualified Datacolor technicians.
Specifications
| Feature | Datacolor 500 | Datacolor 500UV | Datacolor 550 | ||
|---|---|---|---|---|---|
| Instrument type | Dual beam d/8º spectrophotometer | ||||
| Illumination source | Pulsed xenon filtered to approximate D65 | ||||
| Sphere diameter | 152 mm / 6 in | ||||
| Wavelength Range | 360 nm -700 nm | ||||
| Wavelength resolution | 2 nm | ||||
| Reporting interval | 10 nm | ||||
| Photometric range | 0-200% | ||||
| Spectral analyzer | Proprietary SP2000 analyzer with dual 256 element diode array | ||||
| 20 Read Repeatability on White Tile Using Double Flash (CIELAB) * |
0.03 (max) | ||||
| Inter-instrument Agreement – Reflectance Measurements (CIELAB)* |
0.15 (avg) 0.30 (max) |
||||
| Sample Positioning Camera | |||||
| Lens | 4 position auto-zoom | ||||
| Aperture Plates | 3 Standard LAV (30 mm illuminated, 26 mm measured) SAV (9 mm illuminated, 5 mm measured) USAV (6.5 mm illuminated, 2.5 mm measured) 2 Optional MAV (20 mm illuminated, 16 mm measured) XUSAV (3.0 mm illuminated, 2.5 mm measured) |
||||
| Aperture Detection | |||||
| Automated, adjustable UV Calibration | |||||
| UV Cutoff Filters | 400 nm 420 nm 460 nm |
400 nm 420 nm 460 nm |
|||
| Remote Measurement Button | |||||
| Vertical Mount | |||||
| Transmittance | |||||
| Inter-instrument Agreement – Regular Transmittance at 550 nm |
±0.40% at 85% T ±0.20% at 32% T |
||||
| Inter-instrument Agreement – Transmission Haze Measurements | ±0.30% at 10% TH | ||||
| Transmission Sampling Aperture Size | 22 mm | ||||
| Operating Environment | 5° to 40°C up to 85% RH, non-condensing | ||||
| Physical Specifications (DC800) | Description | ||||
| Color Display | 3.5 inch RGB LCD | ||||
| Display Resolution | 320×240 pixel resolution | ||||
| Weight | 37.5 lbs (16.6 kg) | ||||
| Dimensions | 12.3” Wide X 13.2” Tall X 16.4” Deep (31.24 cm x 33.53 cm x 41.66 cm) |
||||
| *Environmental Conditions: | Temperature 23°C +/- 1°C RH 44% +/- 1% |
||||
