CM-25d Spectrophotometer
The Konica Minolta CM-25d is a compact, cost-effective portable spectrophotometer designed for everyday color quality control in manufacturing environments. Part of Konica Minolta's next-generation CM-26d series, the CM-25d shares the same excellent inter-instrument agreement and robust d/8° integrating-sphere optics, delivering reliable, repeatable color data across instruments and production sites. The CM-25d spectrophotometer features a 36-pixel silicon photodiode array, dual pulsed xenon lamps, SCI/SCE measurement capability, and a 2.7-inch color touchscreen. Bluetooth and USB connectivity allow flexible data transfer, while 1,000-target and 30,000-sample memory capacity supports autonomous operation on the production floor. Ideal for incoming material inspection, production line monitoring, and final product color verification in the plastics, coatings, textiles, food, and building materials industries.
About the Konica Minolta CM-25d Spectrophotometer
The Konica Minolta CM-25d is a compact, cost-effective portable spectrophotometer designed for everyday color quality control in manufacturing environments. Part of Konica Minolta's next-generation CM-26d series, the CM-25d shares the same excellent inter-instrument agreement and robust d/8° integrating-sphere optics, delivering reliable, repeatable color data across instruments and production sites. The CM-25d spectrophotometer features a 36-pixel silicon photodiode array, dual pulsed xenon lamps, SCI/SCE measurement capability, and a 2.7-inch color touchscreen. Bluetooth and USB connectivity allow flexible data transfer, while 1,000-target and 30,000-sample memory capacity supports autonomous operation on the production floor. Ideal for incoming material inspection, production line monitoring, and final product color verification in the plastics, coatings, textiles, food, and building materials industries.
Features

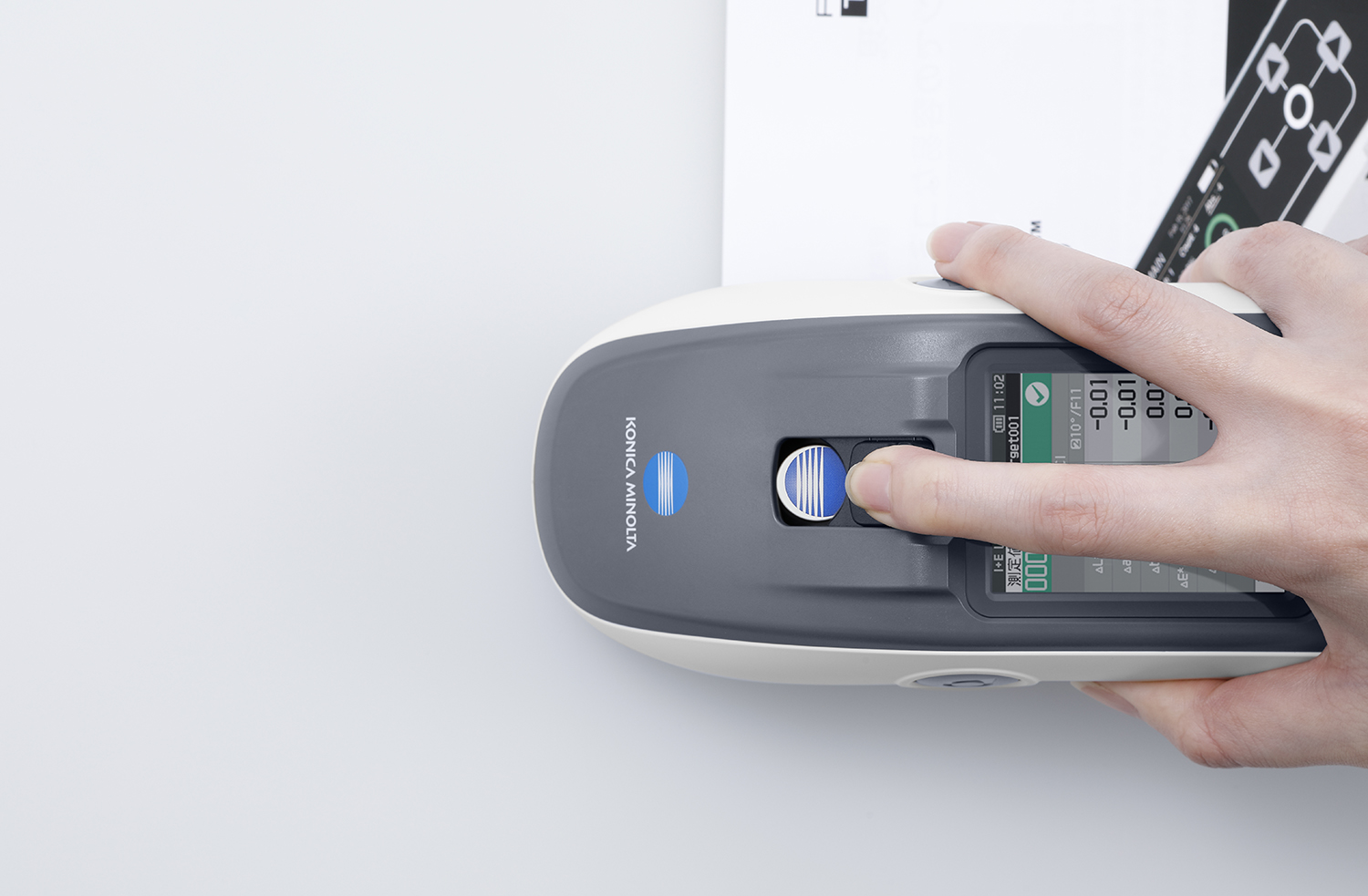

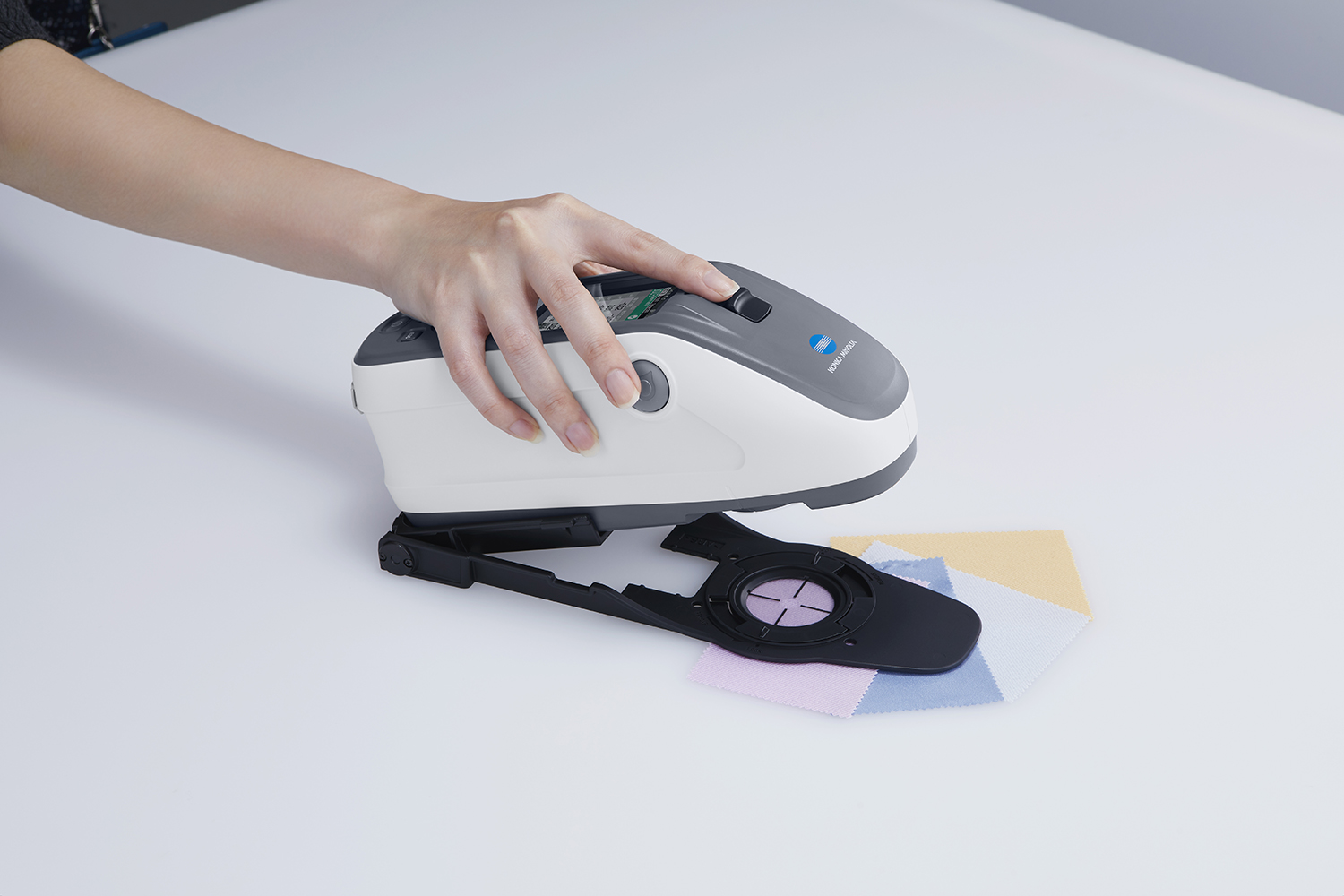

- Vertical form factor for easy one-handed operation
- d/8° optical geometry with SCI/SCE
- Excellent inter-instrument agreement
- Large color touchscreen display
- Bluetooth and USB connectivity
- Compatible with SpectraMagic NX
Specifications
| Optical Geometry | d/8° (diffuse illumination, 8° observation) |
|---|---|
| Sensor | 36-pixel silicon photodiode array |
| Spectral Range | 360 nm to 740 nm |
| Light Source | Pulsed xenon lamp × 2 |
| Measurement Area | Φ8 mm (MAV) / Φ3 mm (SAV) |
| Display | 2.7-inch color LCD touchscreen |
| Interface | USB, Bluetooth |
| Memory | 1,000 target + 30,000 sample data |
| Repeatability | ΔE*ab ≤ 0.03 |
| Dimensions | 152 × 76 × 107 mm |
| Weight | Approx. 670 g |
| Compatible Software | SpectraMagic NX |
Measurement Principle of the CM-25d Spectrophotometer
The CM-25d employs the same d/8° integrating sphere optical system as its higher-end siblings. Two pulsed xenon lamps illuminate a Spectralon-coated 52mm integrating sphere, producing perfectly diffuse illumination across the sample surface. The 8° detector captures reflected spectral energy from 360–740 nm through a diffraction grating and 36-pixel photodiode array. Double-beam referencing ensures stable measurements over time. SCI mode captures total reflectance (diffuse + specular), while SCE mode excludes the specular component for results that correlate with visual perception.
Applications of the CM-25d Spectrophotometer
The CM-25d is ideal for industries that need reliable color measurement at a lower cost of ownership:
Quality Control in Manufacturing
Production line color monitoring, incoming inspection, and final QC across plastics, coatings, textiles, and food processing operations.
Small and Medium Enterprises
Affordable entry into spectrophotometric color measurement for SMEs needing ISO-compliant color data.
Education and Research
Universities and R&D labs use the CM-25d for color science research, material characterization, and student training.
Q: How does the CM-25d differ from the CM-26d?
A: The CM-25d offers the same core color measurement technology at a more accessible price. It is designed for applications that do not require the gloss measurement of the CM-26dG or some of the advanced features of the CM-26d.
Q: Is the CM-25d compatible with SpectraMagic NX?
A: Yes, the CM-25d is fully compatible with SpectraMagic NX color data management software.
